600x612mm horizontal white double flat panel radiator P06-9-DW

Flat Panel Anthracite & White & Black Horizontal Designer Radiator

by AICA_TZBW
Save 14% Save 4%
£56.00
£56.00 - £200.00
£56.00
£53.50
£52.50 - £171.18
£53.50
SKU TZBW_P06-6-SW
Availability:
38 in stock, ready to be shipped
Availability:
16 in stock, ready to be shipped
Availability:
58 in stock, ready to be shipped
Availability:
25 in stock, ready to be shipped
Availability:
56 in stock, ready to be shipped
Availability:
80 in stock, ready to be shipped
Availability:
Out of stock
Availability:
50 in stock, ready to be shipped
Availability:
Out of stock
Availability:
13 in stock, ready to be shipped
Availability:
30 in stock, ready to be shipped
Availability:
33 in stock, ready to be shipped
Availability:
Out of stock
Availability:
8 in stock, ready to be shipped
Availability:
20 in stock, ready to be shipped
Availability:
Out of stock
Availability:
Out of stock
Availability:
60 in stock, ready to be shipped
Availability:
Out of stock
Availability:
Out of stock
Availability:
44 in stock, ready to be shipped
Availability:
Out of stock
Availability:
28 in stock, ready to be shipped
Availability:
6 in stock, ready to be shipped
Availability:
20 in stock, ready to be shipped
Availability:
Out of stock
Availability:
46 in stock, ready to be shipped
Availability:
Out of stock
Availability:
54 in stock, ready to be shipped
Availability:
9 in stock, ready to be shipped
Availability:
Out of stock
Availability:
33 in stock, ready to be shipped
Availability:
42 in stock, ready to be shipped
Availability:
Out of stock
Availability:
16 in stock, ready to be shipped
Availability:
Out of stock
Availability:
Out of stock
Availability:
8 in stock, ready to be shipped
Availability:
27 in stock, ready to be shipped
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Color: White

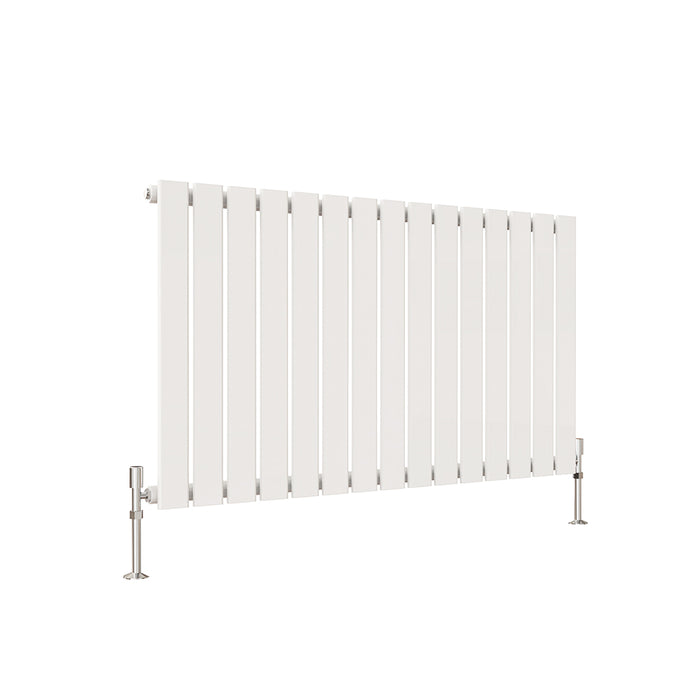

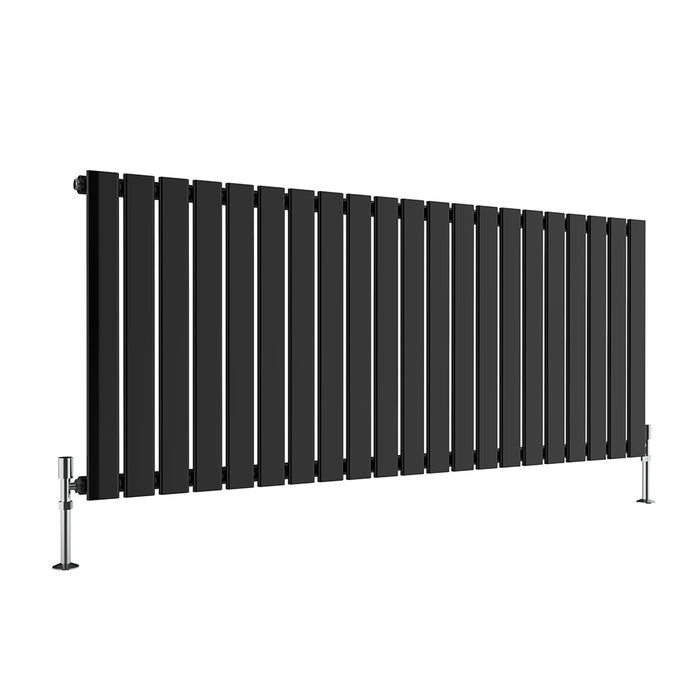

Horizontal,Flat Panel Bathroom Radiators from AICA designer

Description：

  • With a strict manufacturing process, our radiators offer you a heating solution at an competitive price.
  • They easily fit into your central heating system like a normal household radiator, meaning no complicated installation.
  • The water inlet/outlet size of radiators is 1/2".
  • All of our radiators come with lifetime warranty.
  • It perfectly matches the decoration style of all rooms such as kitchen, bathroom, bedroom and living room.

    Features And Details：

    • High quality triple layered finish.
    • Manufactured in accordance with BS EN 442
    • 1/2" inlets and outlets
    • Made from 1.6mm Premium Mild Steel
    • Unique hot water circulation structure

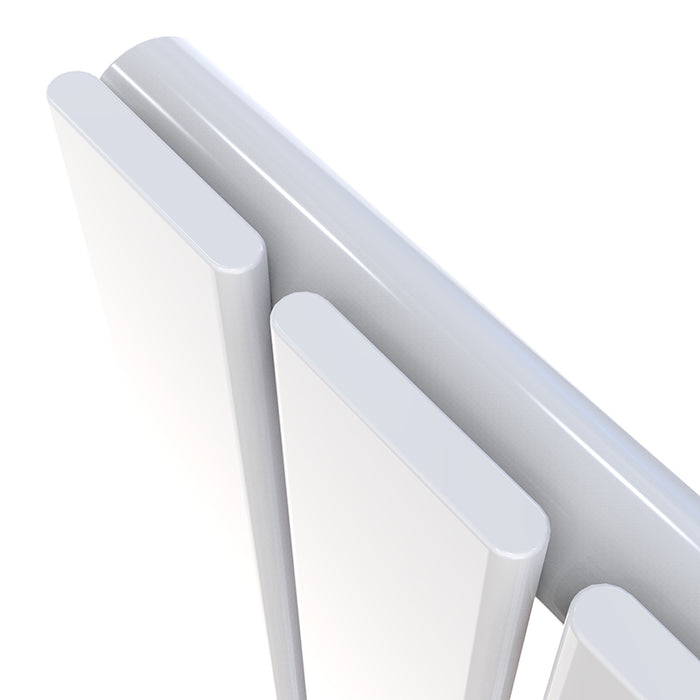

    • Modern style flat panel high quality radiator
    • Wall mount or stand-up installation
    • Brackets and fixings included
    • Valves are not included.But can be bought separately.Click here to buy our high quality valves.
    • Anthracite and Black Color Are Matte and the White Color is Gloss

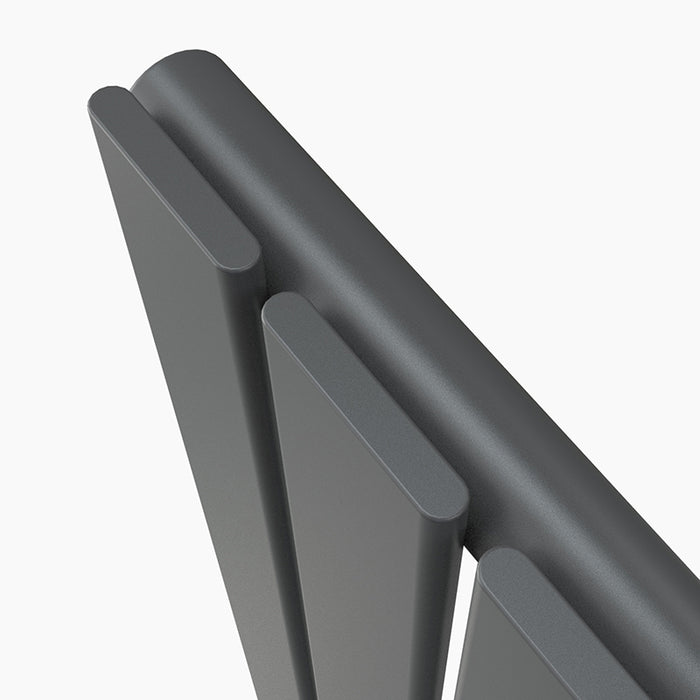

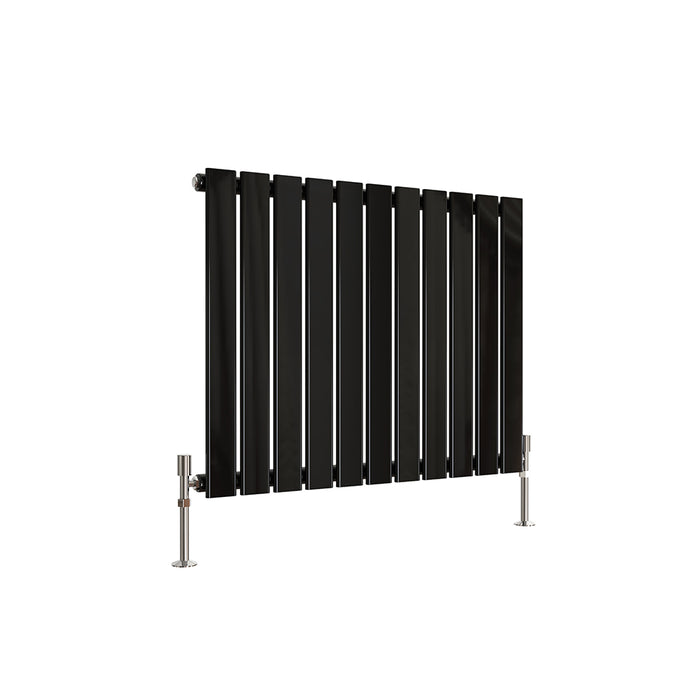

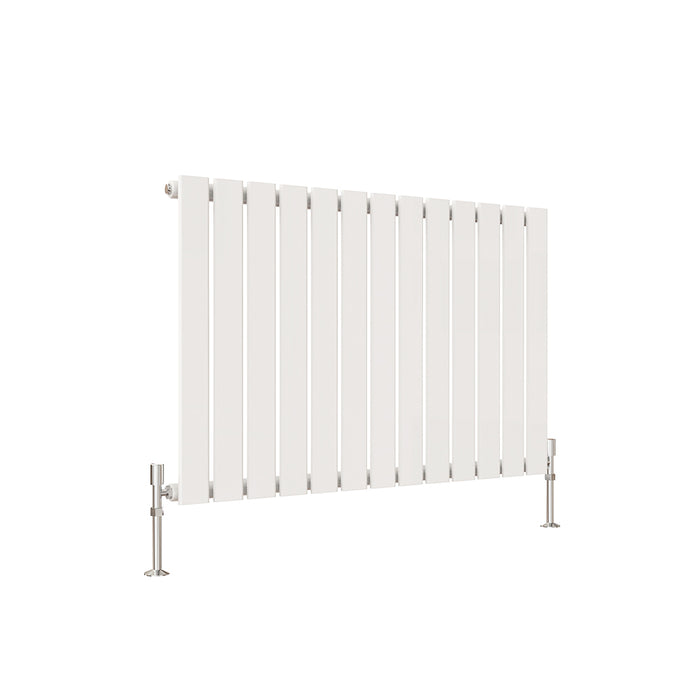

    Single Layer Flat Horizontal Radiator:

    Model Size(H x W) Panel Pipe Amount Weight (KG) Heat Output Data Sheet
    Watt BTU

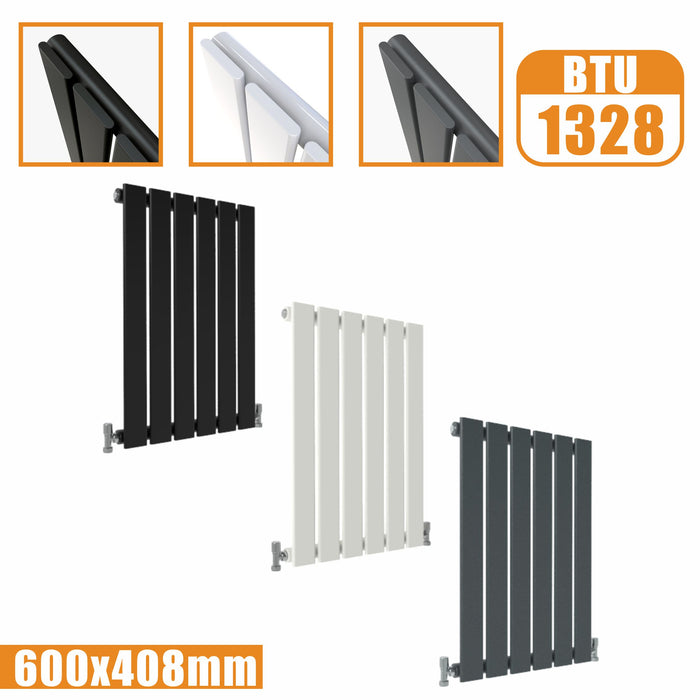

    Flat Panel 600 x 408mm Single 6 8.3 389 1328
    Click to view

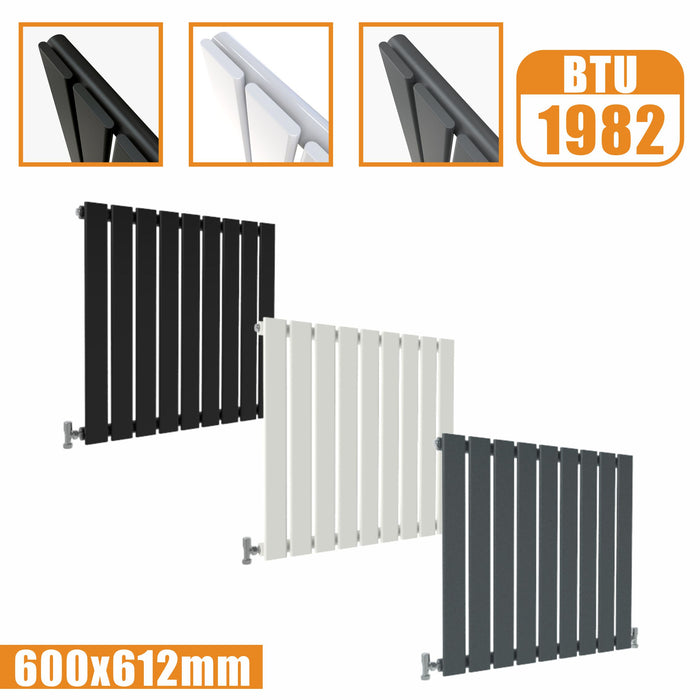

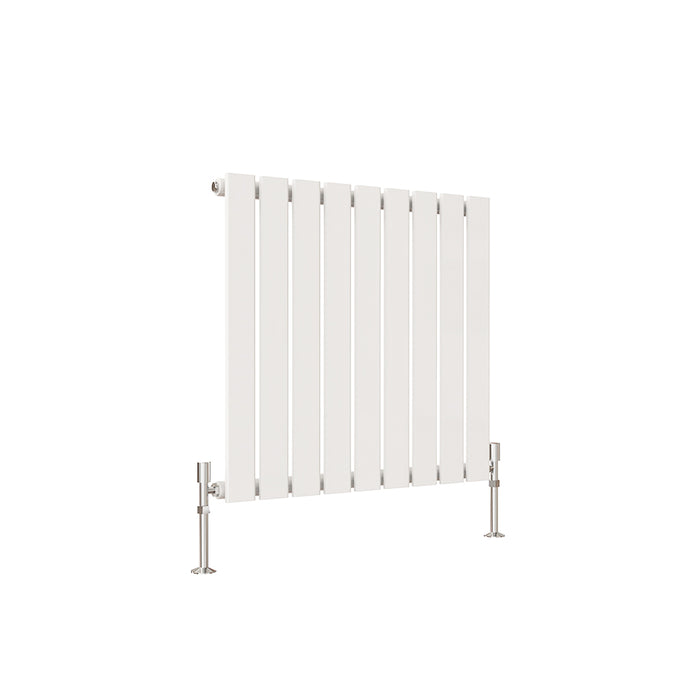

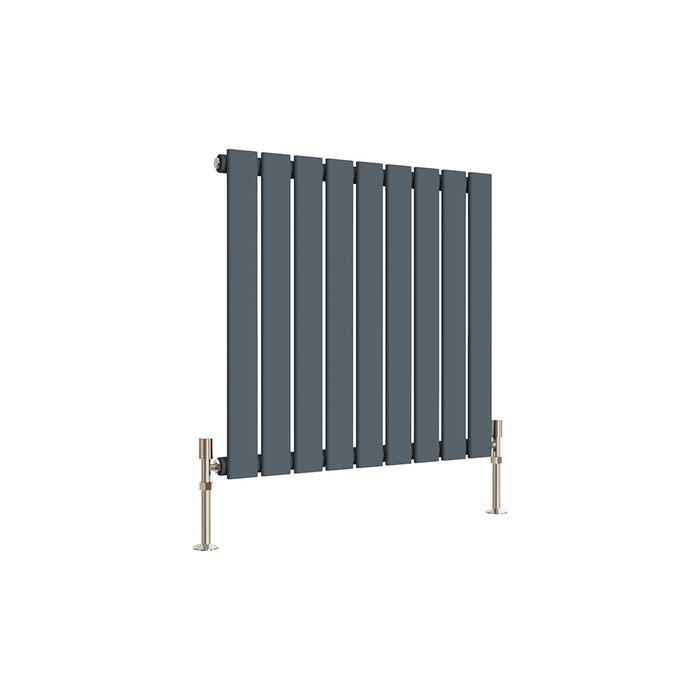

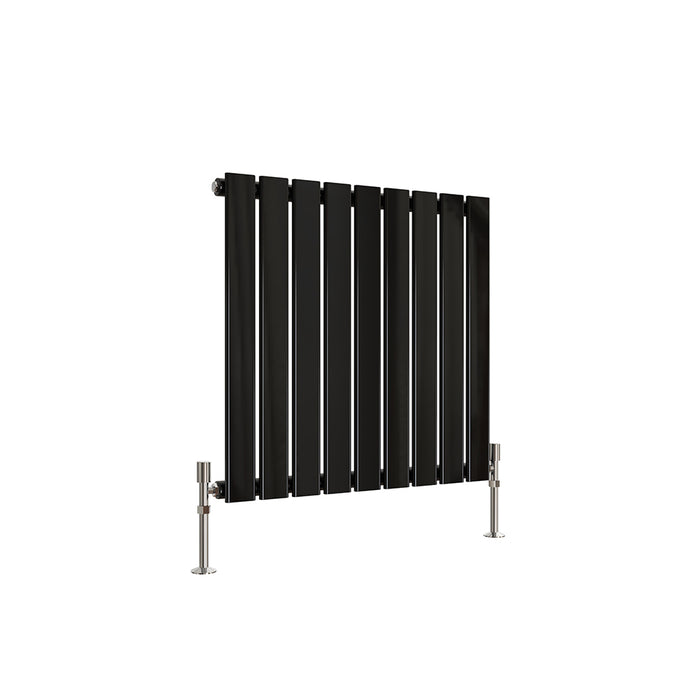

    Flat Panel 600 x 612mm Single 9 11.5 581 1982
    Click to view

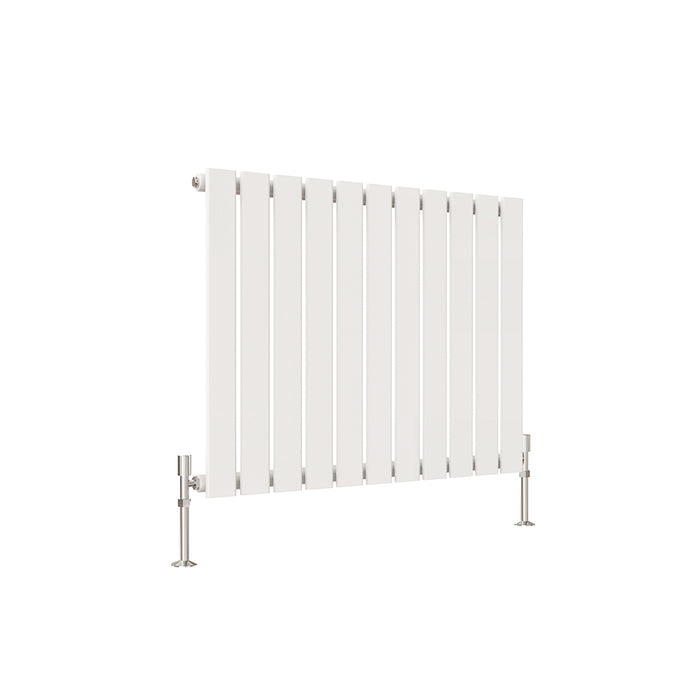

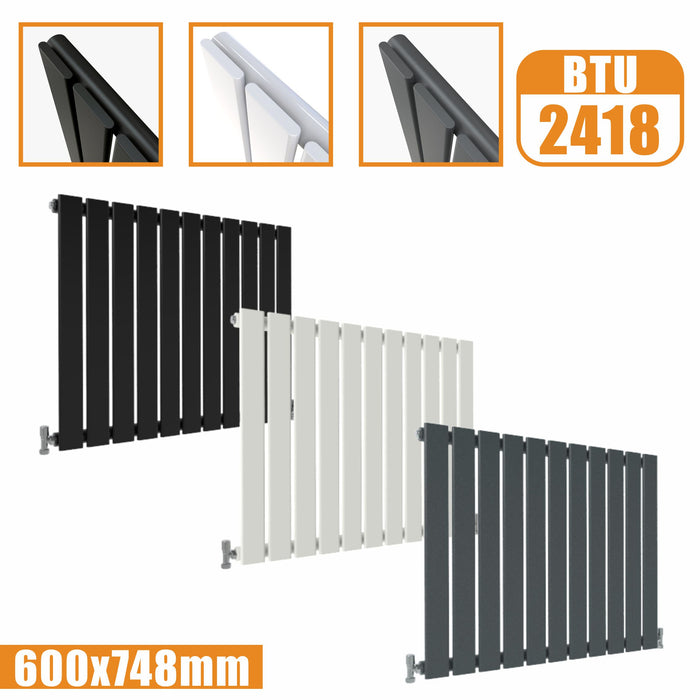

    Flat Panel 600 x 748mm Single 11 13.8 708 2418
    Click to view

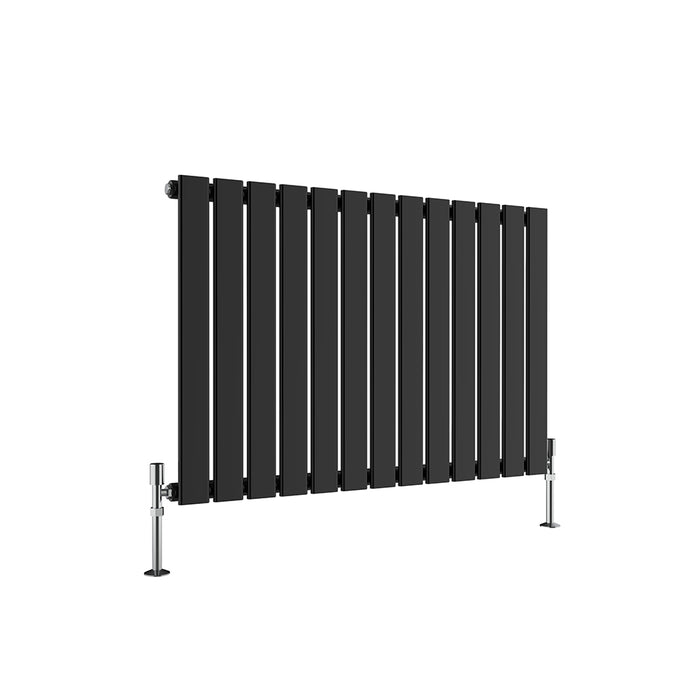

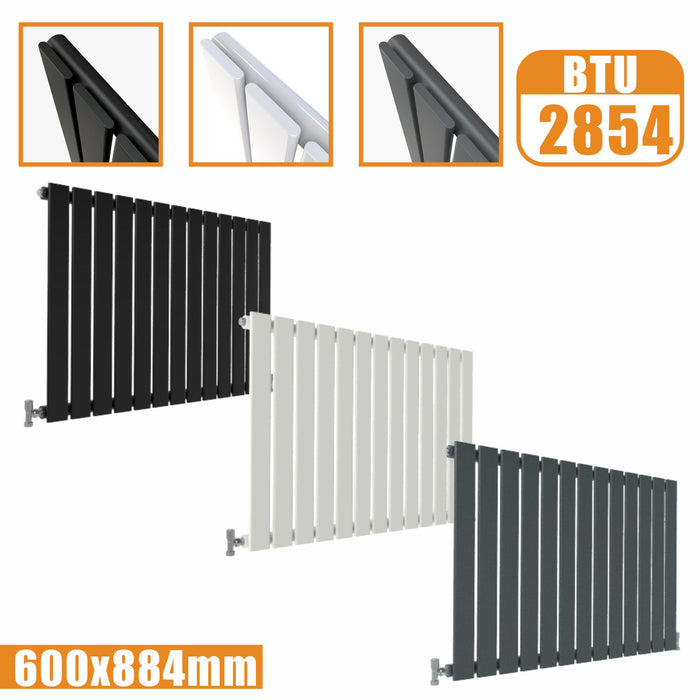

    Flat Panel 600 x 884mm Single 13 16.2 836 2854
    Click to view

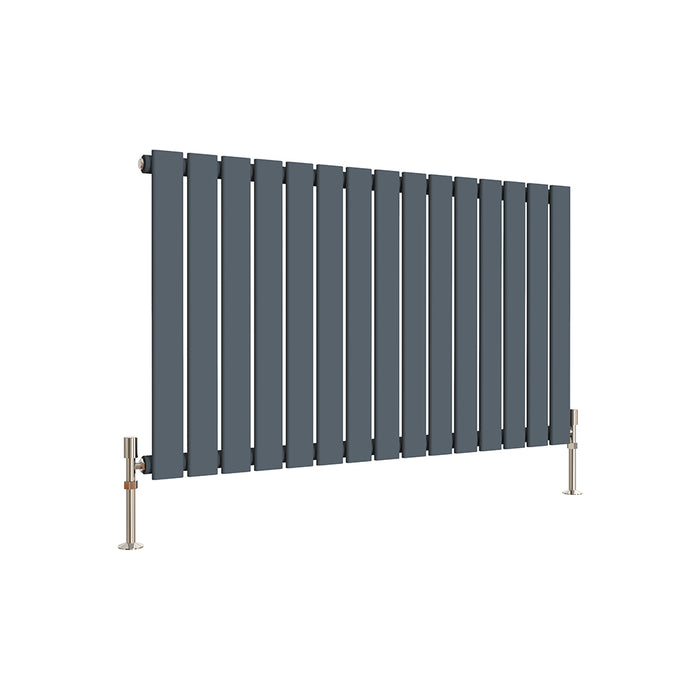

    Flat Panel 600 x 1020mm Single 15 18.2 964 3290
    Click to View

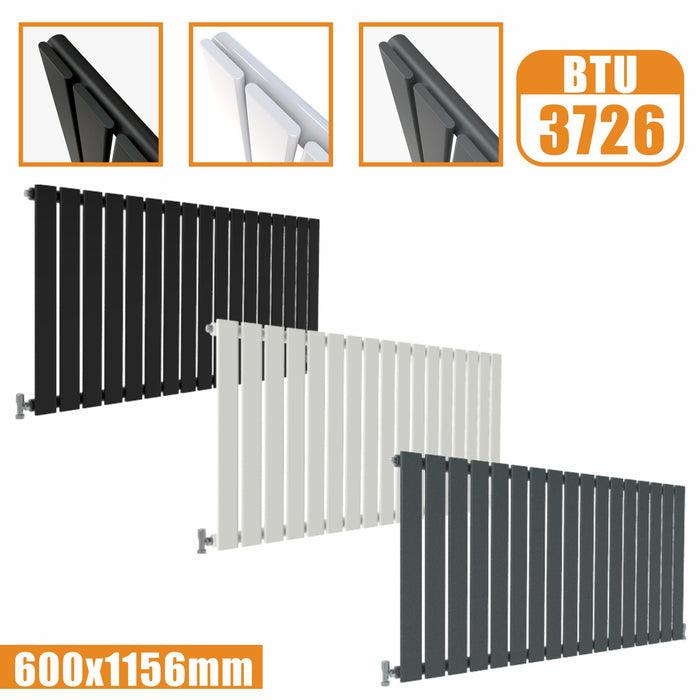

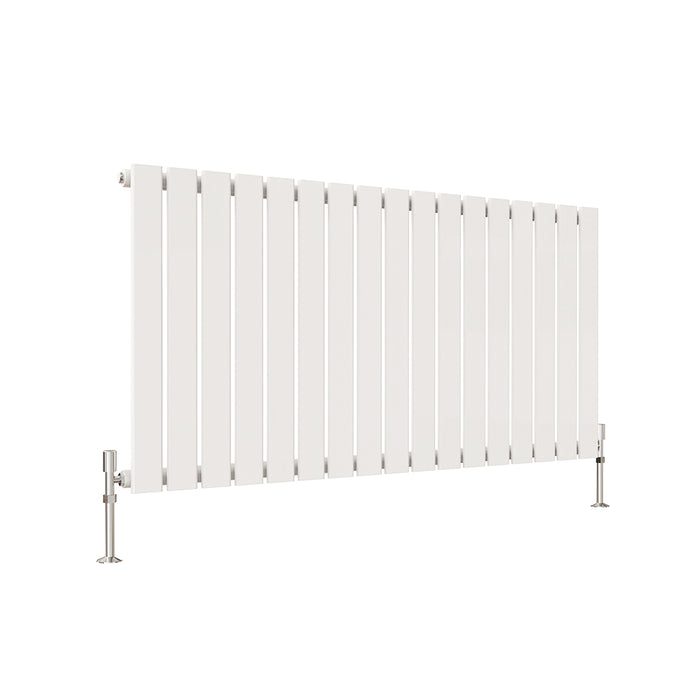

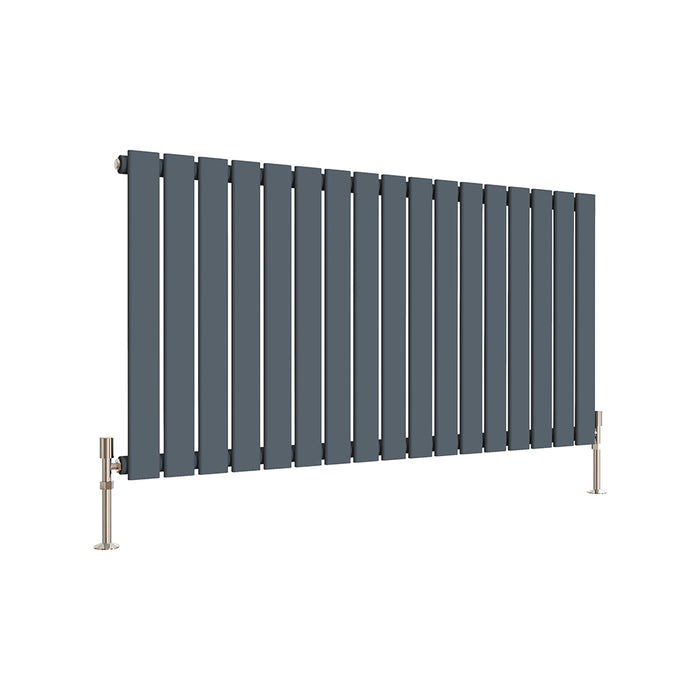

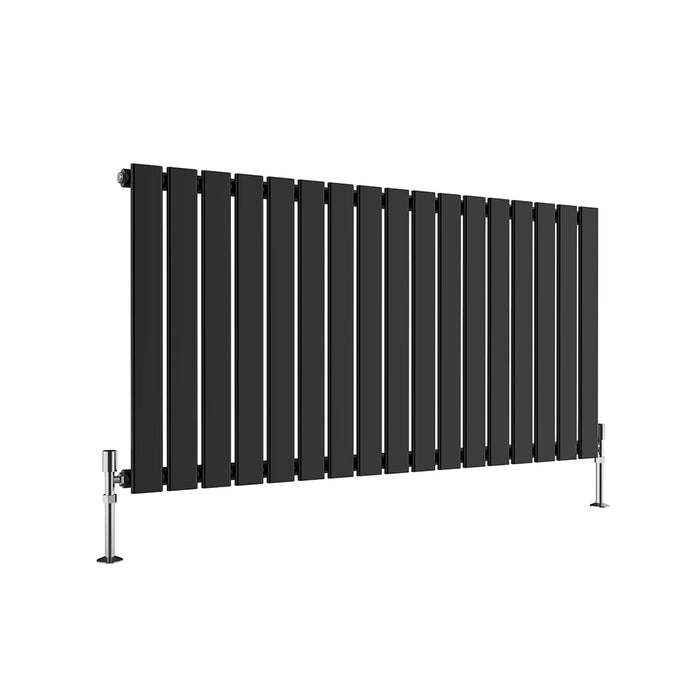

    Flat Panel 600 x 1156 mm Single 17 20.6 1092 3726
    Click to View

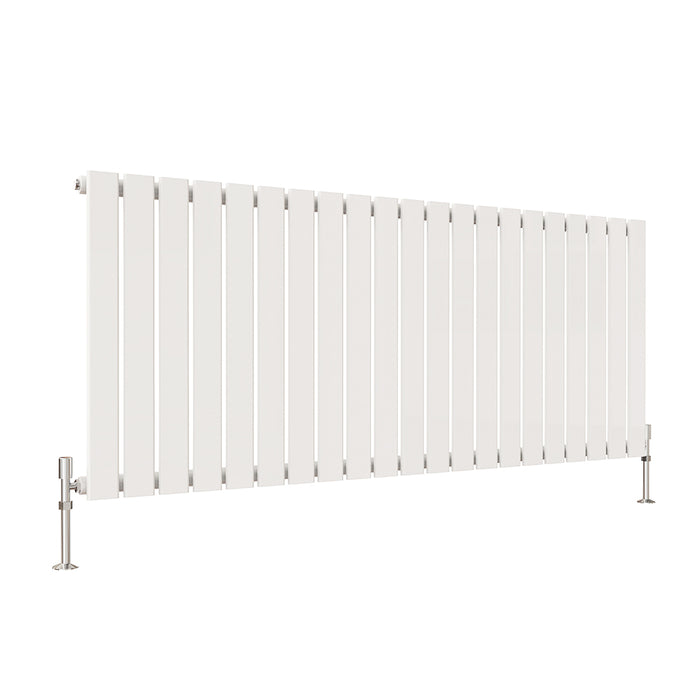

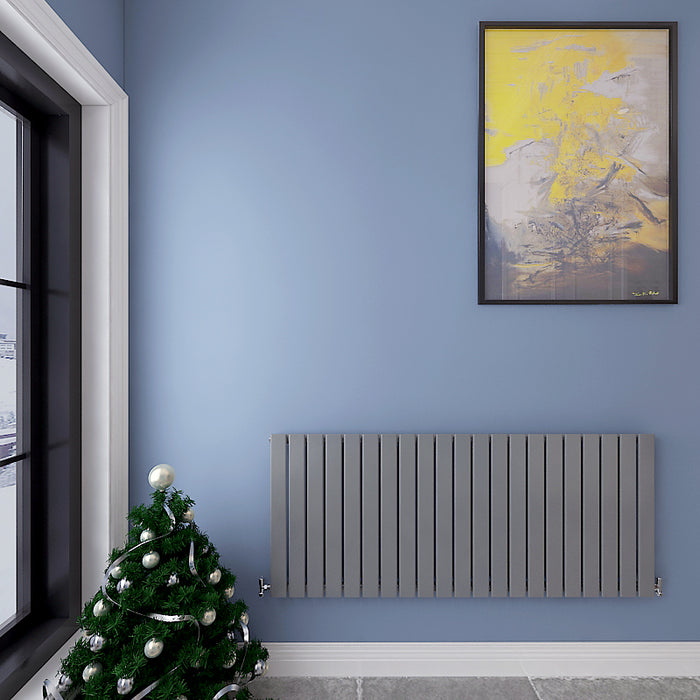

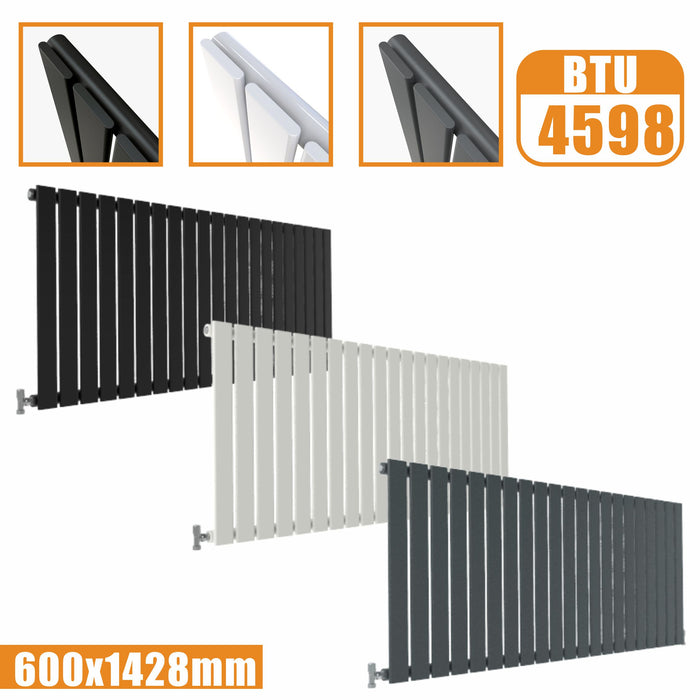

    Flat Panel 600 x 1428 mm Single 21 25 1347 4598
    Click to View

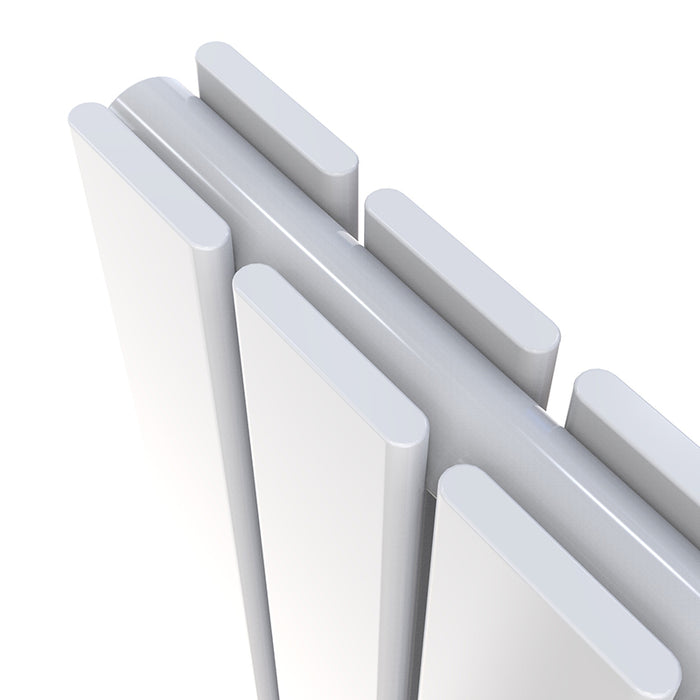

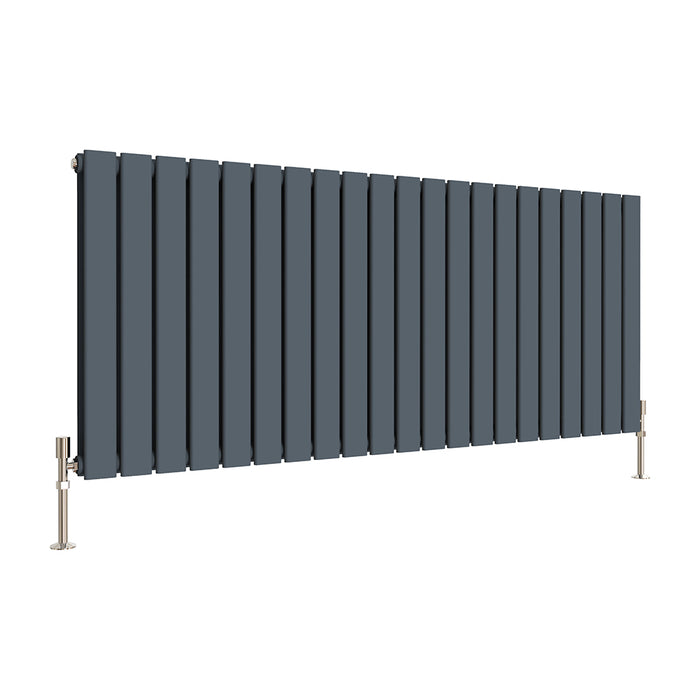

    Double Layer Flat Horizontal Radiator:

    Model Size(H x W) Panel Pipe Amount Weight (KG) Heat Output Data Sheet
    Watt BTU

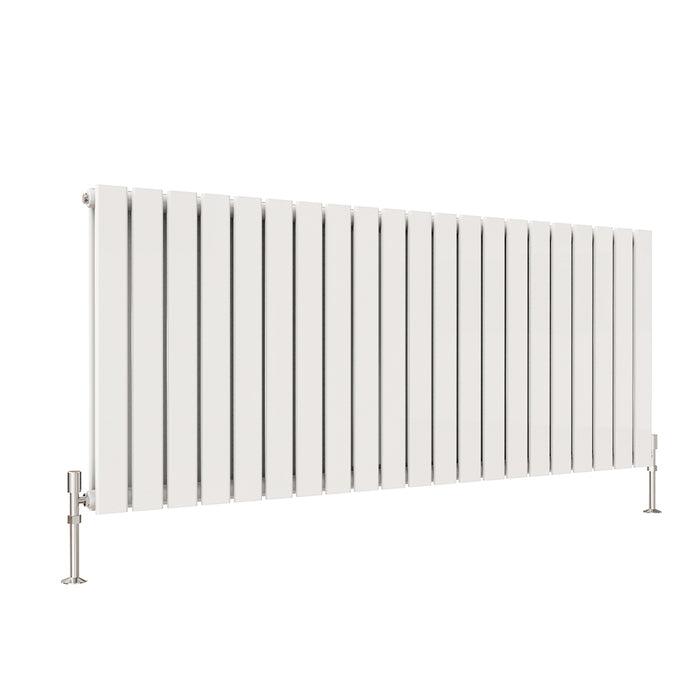

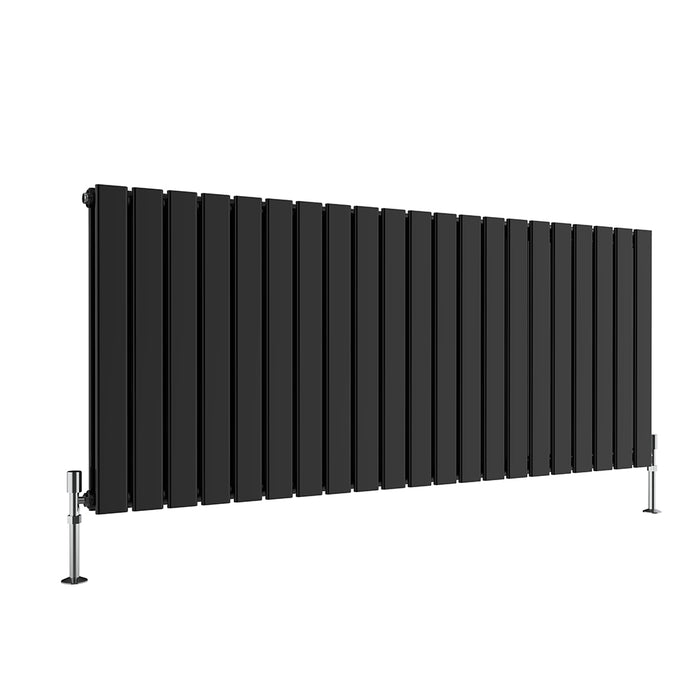

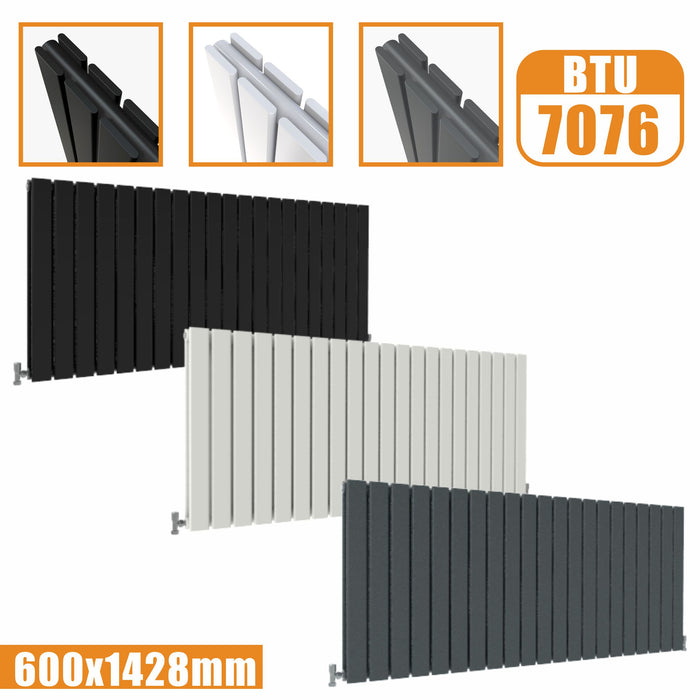

    Flat Panel 600 x 1428 mm Double 21+21 44.9 2073 7076
    Click to view

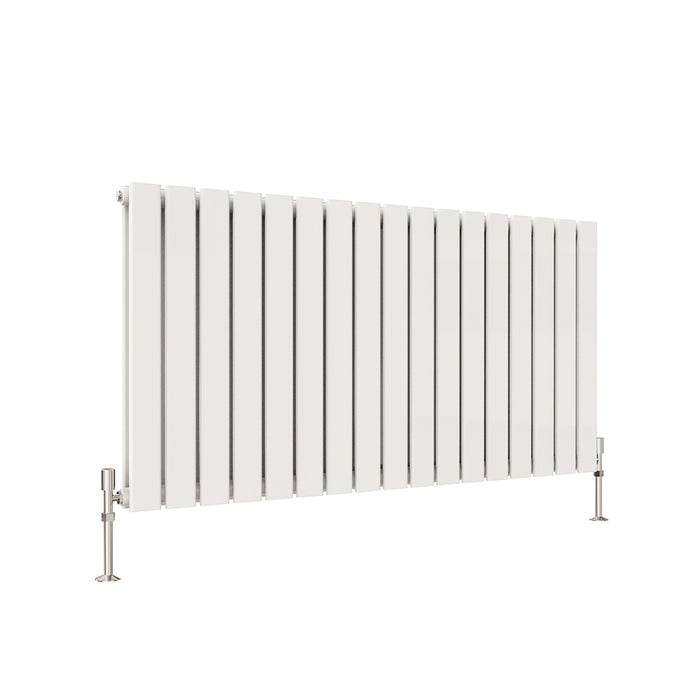

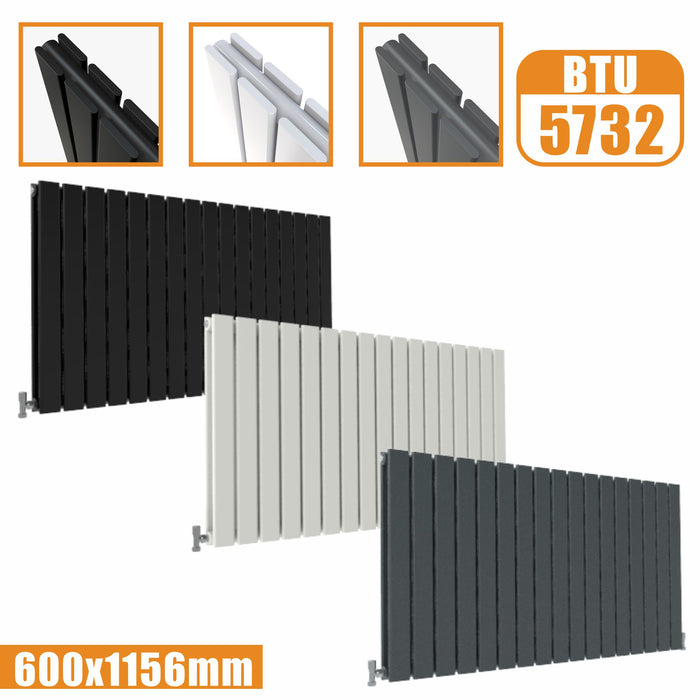

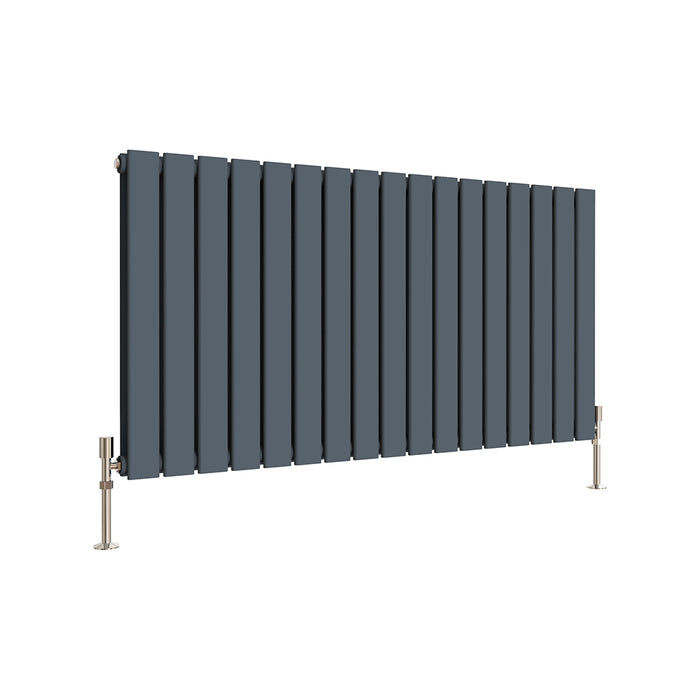

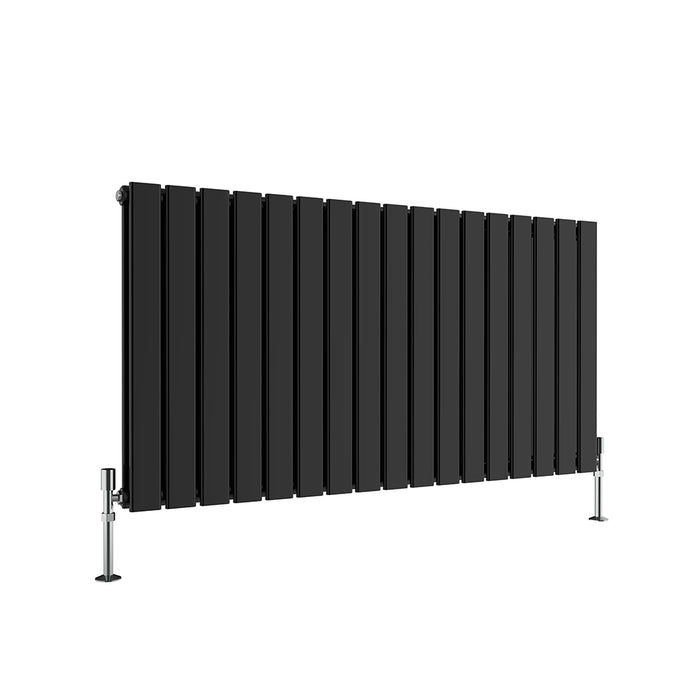

    Flat Panel 600 x 1156 mm Double 17+17 36.4 1679 5732
    Click to view

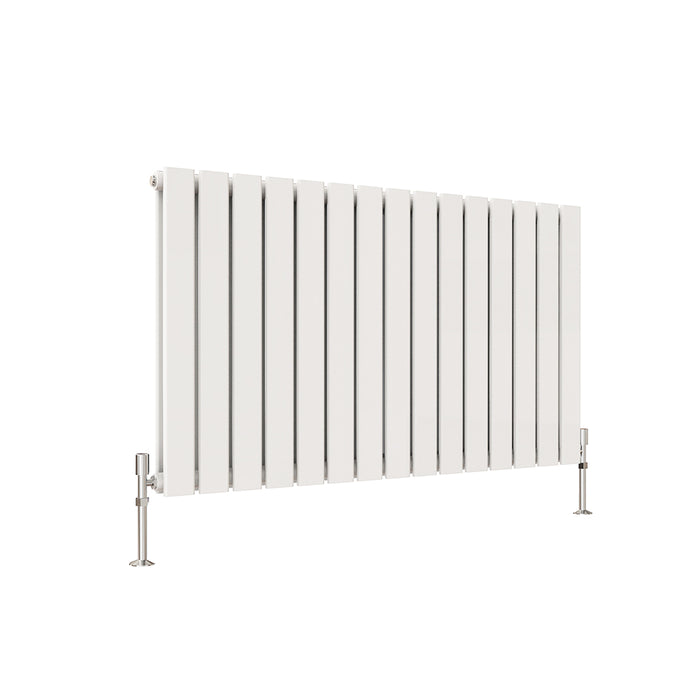

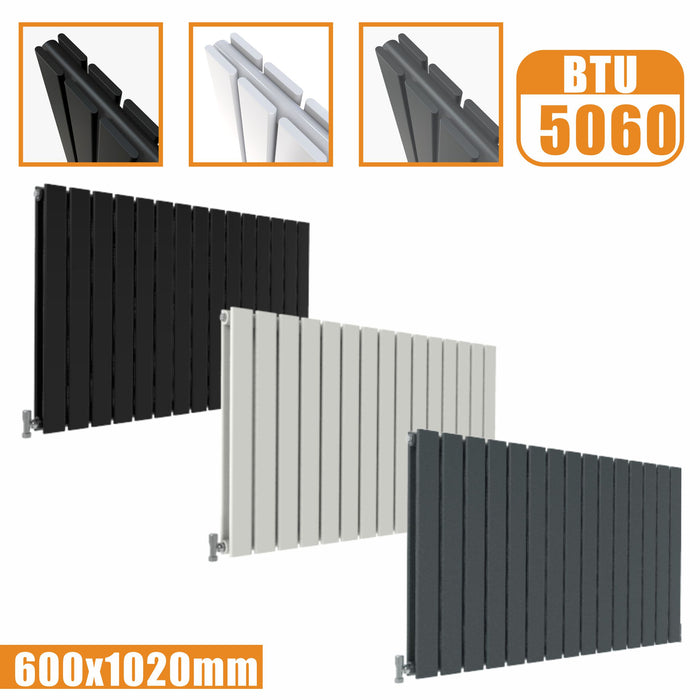

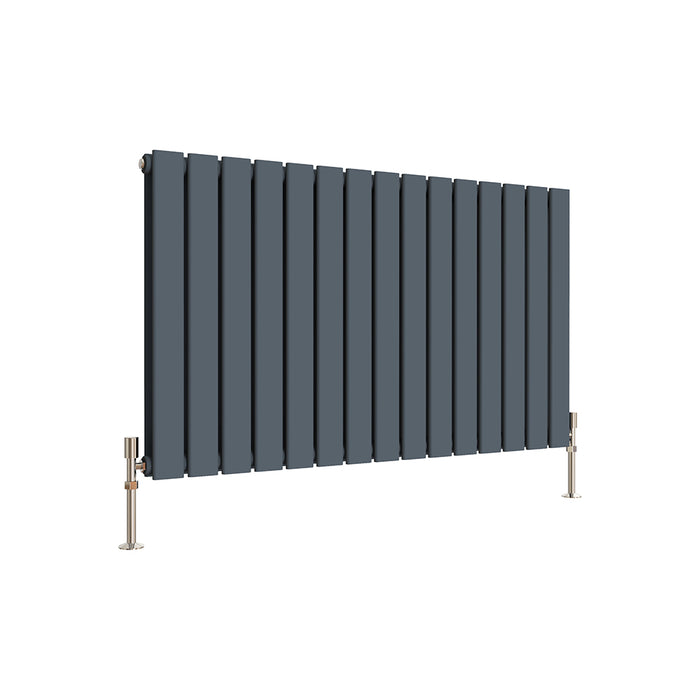

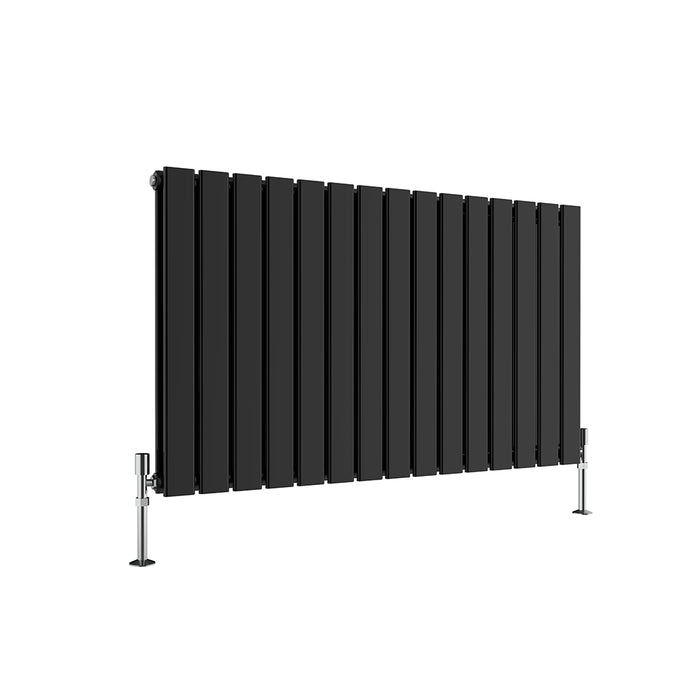

    Flat Panel 600 x 1020 mm Double 15+15 32.5 1483 5060
    Click to view

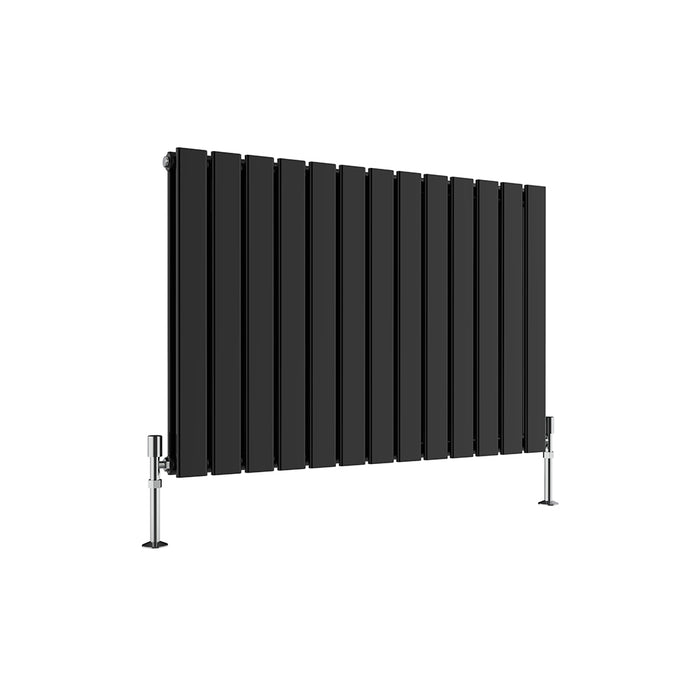

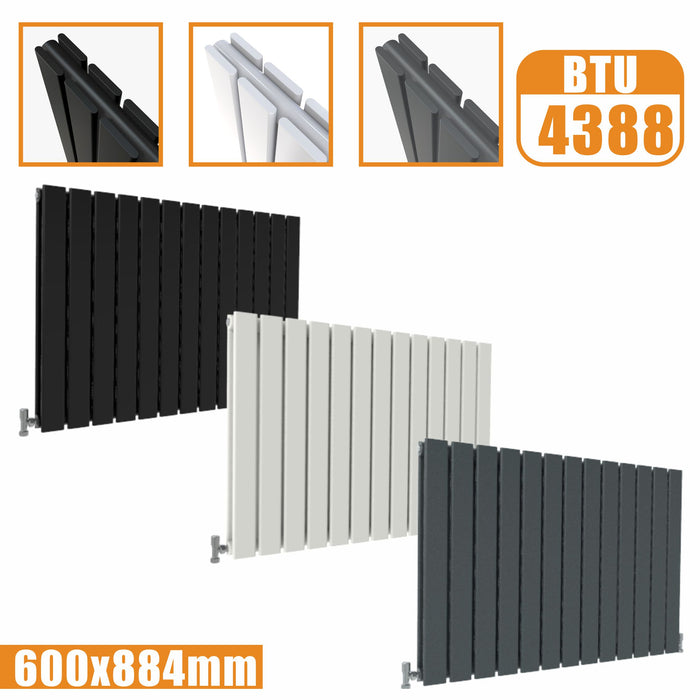

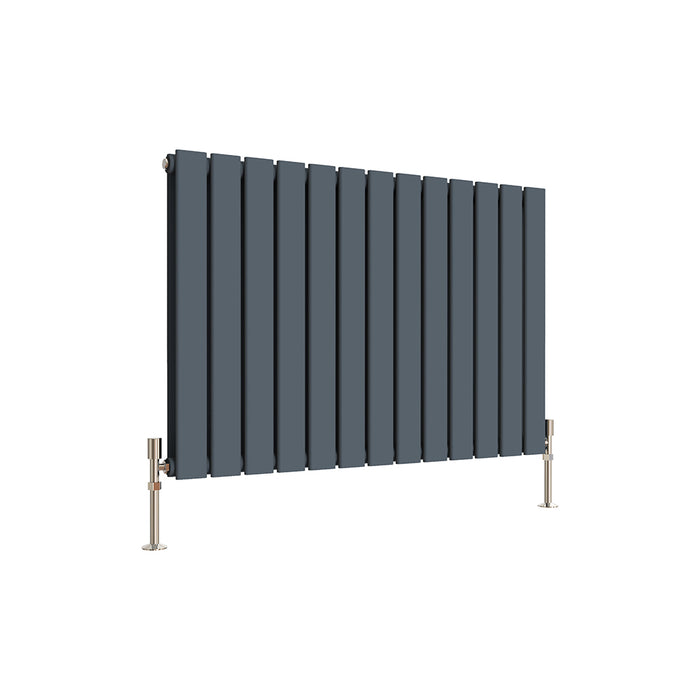

    Flat Panel 600 x 884 mm Double 13+13 28.6 1286 4388
    Click to view

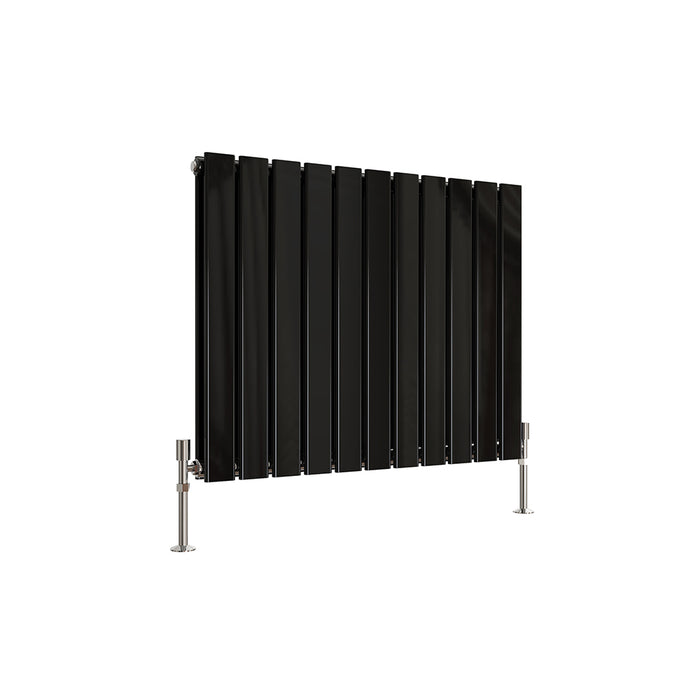

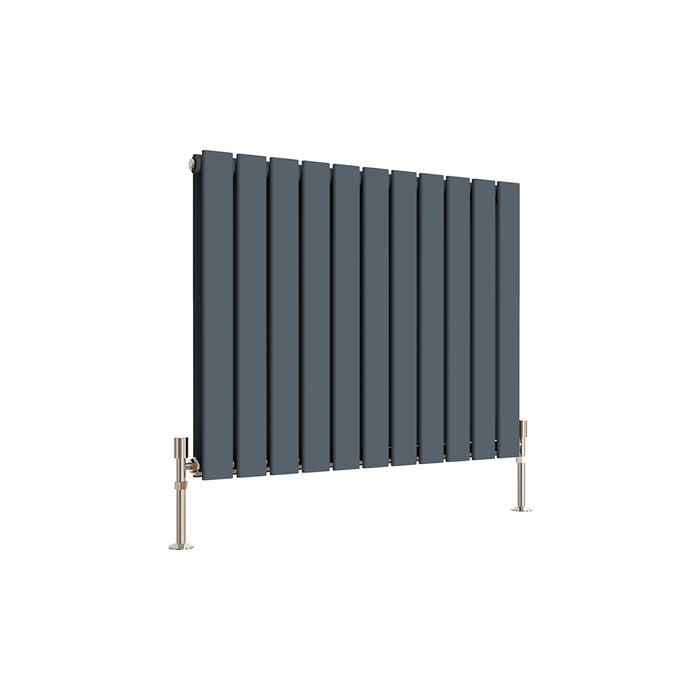

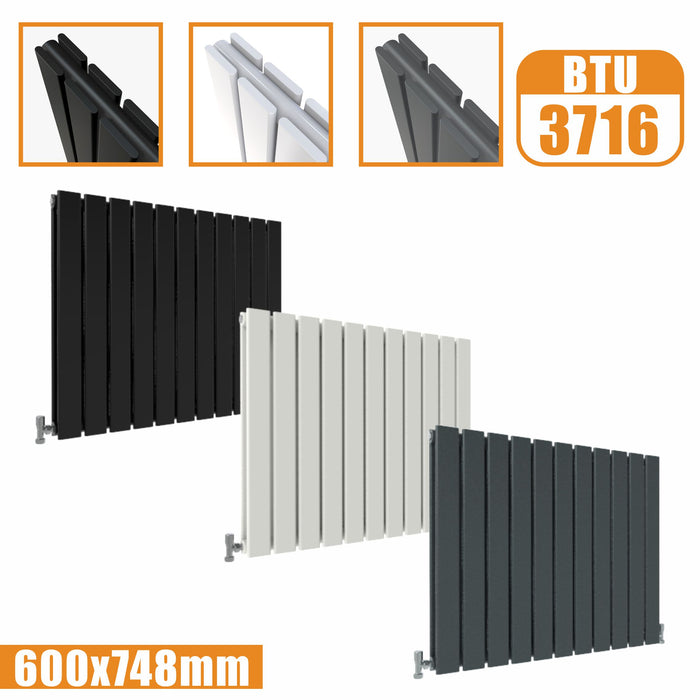

    Flat Panel 600 x 748 mm Double 11+11 24.5 1089 3716
    Click to View

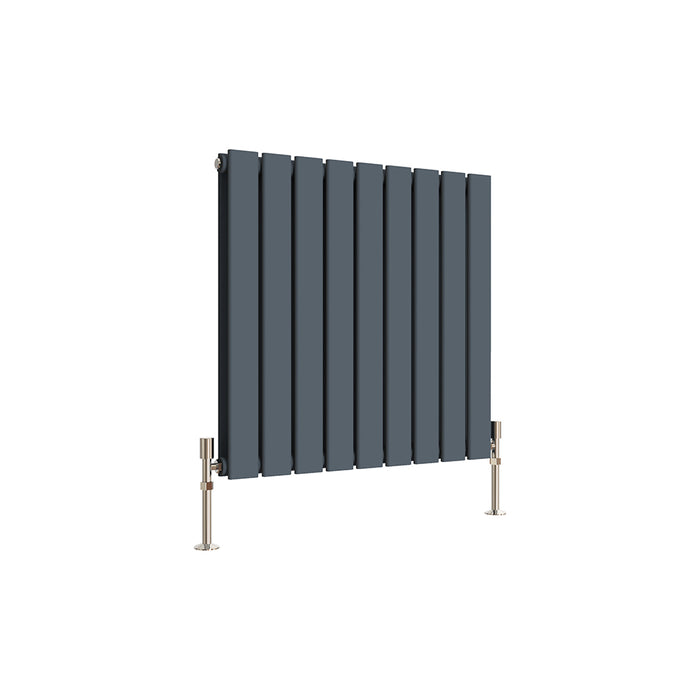

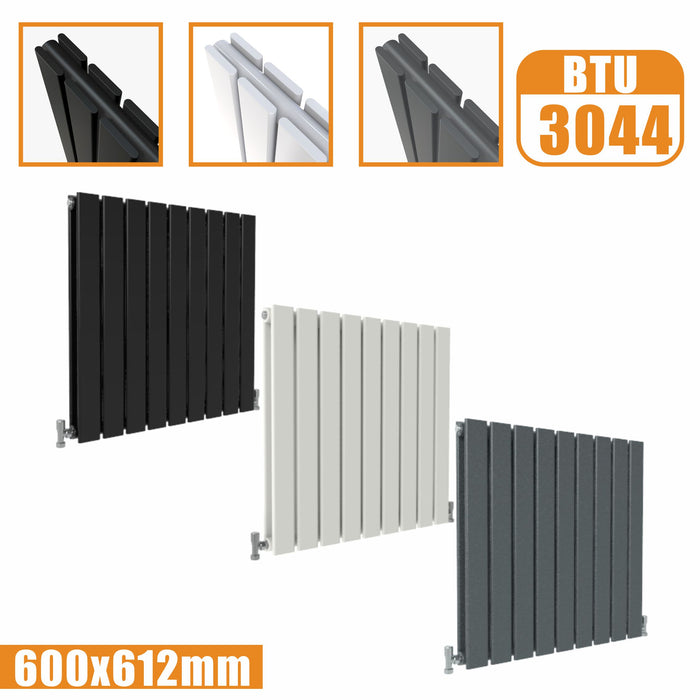

    Flat Panel 600 x 612 mm Double 9+9 20 892 3044
    Click to View

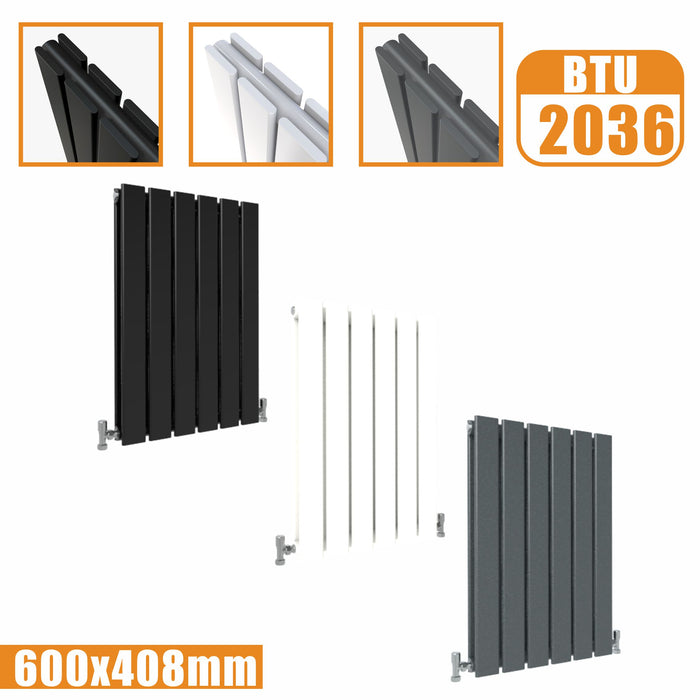

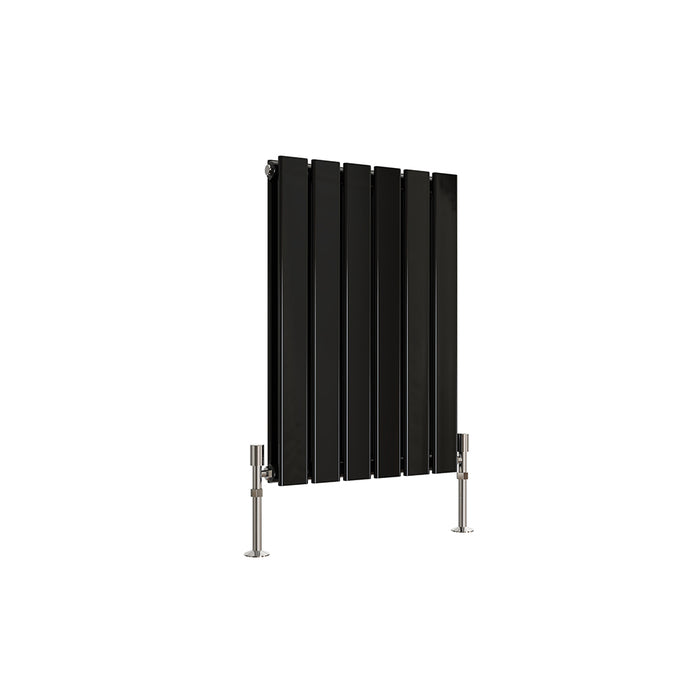

    Flat Panel 600 x 408 mm Double 6+6 13.8 597 2036
    Click to View



    *Not recommend to install any pipework before you receive your radiator.

    *BTU for reference only, it depends on various elements such as flow temperature and indoor temperature.

    Delivery Zone

    Notice: There are two ways for delivery according to different postcodes : Next working day paid by paypal before 00:30AM and three working days. Pls subject to map and below content for delivery, thanks!
    Pls give us your mobile phone No. for delivery,WE WILL NOT DISPATCH WITHOUT YOUR PHONE NO.
    Postcode area Next working day 3 working days
    BD, PR, BB, FY, LS, WF, HX, HD, OL, BL, WN, L, CH, CW, WA, M, SK, S, NG, DE, LE, CV, NN, MK, LU, AL, SG, CB, CO, CM, SS, HP, SL, RG, OX, SO, SP, BH, BA, SN, BS, NP, CF, HR, WR, GL, SN, WS, WV, DY, B, ST, TF, WD, EN, HA, UB, SM, IG, RM, DA, BR, CR, KT, TW FREE FREE
    LN, PE, NR, IP, TR, PL, TQ, EX, TA, DT, LL, SY, SA, LD, NE, DH, SR, TS, DL, CA, LA, HG, YO, DN, HU, ML, KA, DG, G, KY, FK, EH, TD £40 extra FREE
    AB,DD,PA,PH £100 extra £80 extra
    Isle Of Man/Wight, Highland,Hayling Island,Scottish and Channel Islands,Republic of Ireland, Northern Ireland, Portsea Island,Mersea Island. Not Available Not Available
    Note:The area we offer next working day delivery (all orders that payments made by paypal before 00:30AM,will be delivered the next working day,Exclude weekends and public holidays)
