Cast Iron Style Horizontal Traditional 2&3 Columns Radiator
by AICA_TZBW
Save 39%
Original price
£190.00
Original price
£66.00
-
Original price
£248.00
Original price
£190.00
Current price
£156.37
£54.65
-
£232.29
Current price
£156.37
SKU TZBW_C03-32-3W
Note, please do not book an installer until the product arrives and make sure that there are no quality issues! If you have any questions, contact customer service first please, thanks!

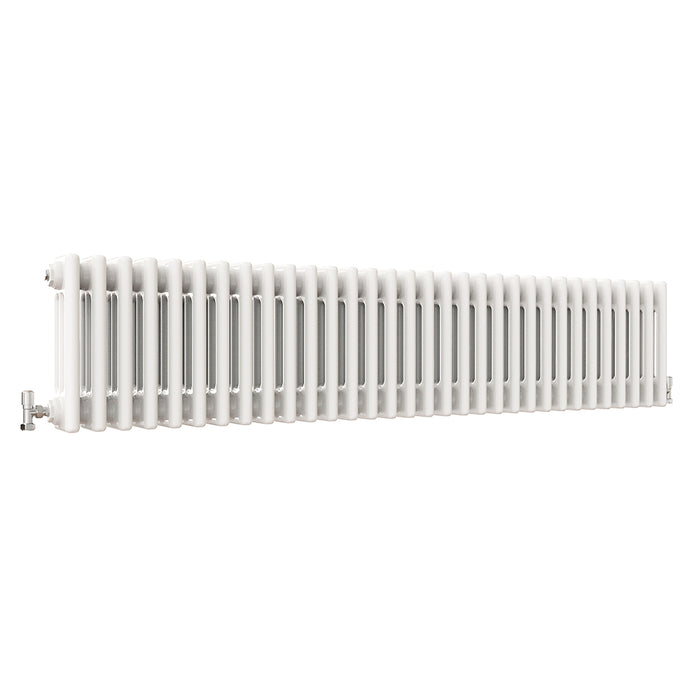

Horiziontal 2-3 Columns Radiator
Description：
- Lifetime Warranty
- Made from 1.5mm Premium Mild Steel
- Triple layered finish
- Color: Anthracite/White/Black
- Fully safety tested.
- Compatible for use on all UK heating systems
- It perfectly matches the decoration style of all rooms such as kitchen, bathroom, bedroom and living room.
Features And Details：
- High quality triple layered finish.
- Manufactured in accordance with BS EN 442
- 1/2" inlets and outlets
- Unique hot water circulation structure
- Tradition horizontal high quality heating radiator
- Wall mount or stand-up installation
- Brackets and fixings included
- Valves are not included.But can be bought separately.Click here to buy our high quality valves.
- Note: Anthracite and Black Color Are Matt and the White Color Is Gloss.
Horiziontal 2 Columns Radiator:
| Model | Size (HxW) | Panel | Bars | Weight (KG) | Heat Output | Data Sheet | |
| Watt | BTU | ||||||
| Tradition Style | 300 x 425 mm | 2 Column | 9 | 6 | 280 | 957 |
 |
| Tradition Style | 300 x 605 mm | 2 Column | 13 | 8 | 401 | 1369 |
 |
| Tradition Style | 300 x 830 mm | 2 Column | 18 | 11.1 | 555 | 1895 |
 |
| Tradition Style | 300 x 1010 mm | 2 Column | 22 | 13.6 | 675 | 2304 |
 |
| Tradition Style | 300 x 1190 mm | 2 Column | 26 | 16.5 | 798 | 2723 |
 |
| Tradition Style | 300 x 1460 mm | 2 Column | 32 | 20.3 | 982 | 3352 |
 |
| Tradition Style | 600 x 425 mm | 2 Column | 9 | 11 | 553 | 1889 |
 |
| Tradition Style | 600 x 605 mm | 2 Column | 13 | 16.1 | 799 | 2728 |
 |
| Tradition Style | 600 x 830 mm | 2 Column | 18 | 22.9 | 1102 | 3760 |
 |
| Tradition Style | 600 x 1010 mm | 2 Column | 22 | 27.9 | 1348 | 4600 |
 |
| Tradition Style | 600 x 1190 mm | 2 Column | 26 | 33 | 1590 | 5425 |
 |
| Tradition Style | 600 x 1460 mm | 2 Column | 32 | 40.5 | 1957 | 6678 |
 |
Horiziontal 3 Columns Radiator:
| Model | Size (HxW) | Panel | Bars | Weight (KG) | Heat Output | Data Sheet | |
| Watt | BTU | ||||||
| Tradition Style | 300 x 425 mm | 3 Column | 9 | 8.8 | 387 | 1320 |
 |
| Tradition Style | 300 x 605 mm | 3 Column | 13 | 12.7 | 557 | 1900 |
 |
| Tradition Style | 300 x 830 mm | 3 Column | 18 | 17.6 | 766 | 2615 |
 |
| Tradition Style | 300 x 1010 mm | 3 Column | 22 | 21.5 | 935 | 3190 |
 |
| Tradition Style | 300 x 1190 mm | 3 Column | 26 | 24.5 | 1102 | 3762 |
 |
| Tradition Style | 300 x 1460 mm | 3 Column | 32 | 30 | 1355 | 4625 |
 |
| Tradition Style | 600 x 425 mm | 3 Column | 9 | 16.1 | 785 | 2680 |
 |
| Tradition Style | 600 x 605 mm | 3 Column | 13 | 23.3 | 1133 | 3868 |
 |
| Tradition Style | 600 x 830 mm | 3 Column | 18 | 31.9 | 1568 | 5353 |
 |
| Tradition Style | 600 x 1010 mm | 3 Column | 22 | 39 | 1919 | 6548 |
 |
| Tradition Style | 600 x 1190 mm | 3 Column | 26 | 46.1 | 2265 | 7730 |
 |
| Tradition Style | 600 x 1460 mm | 3 Column | 32 | 57.2 | 2784 | 9500 |
 |
*Not recommend to install any pipework before you receive your radiator.
*BTU for reference only, it depends on various elements such as flow temperature and indoor temperature.
