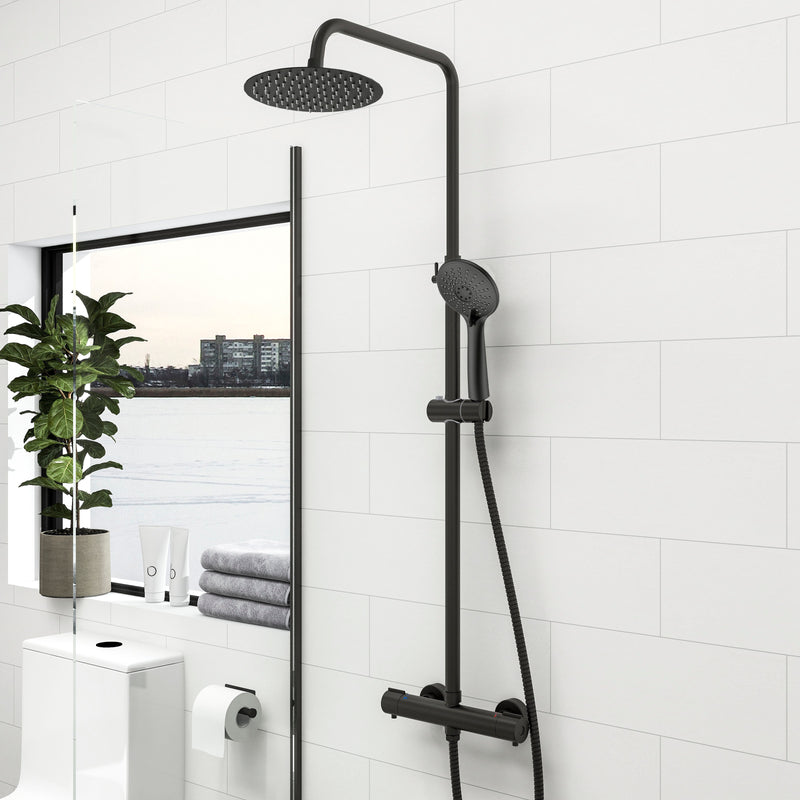

AICA Bathroom Stainless Steel Thermostatic Shower Mixer Set 21h

Product Details:

• Safe And Comfortable: Our thermostatic shower system is equipped with a safety lock at 38°C protects you and your family against scalding-hot water. The thermostatic valve core has an automatic water shutoff function to avoid water suddenly change the temperature, prevent hot water burns when cold water is cut off

• Long Service Life: The ABS plastic nozzles on the head and hand shower prevent calcification and blockages. It is easy to clean the surface of the shower column, which will ensure a clean and shiny appearance and guarantee the product's durability.

• Easy Adjustable & Rotation: The top spray and shower head can be raised and lowered freely. Top spray angle can be adjusted,You can enjoy the shower as if you were in the rain.

• Standard Fitting: Size of inlet: G 3/4", Size of outlet: G 1/2", easy to install, suitable for any bathroom. Note:Rinse the pipe sediment before installing the shower to avoid blockage or odor. Install the thermostatic mixer to connect the hot water to left and the cold water to the right. If you have any questions about the product, please feel free to contact us, we will do our best to give you a pleasant experience.

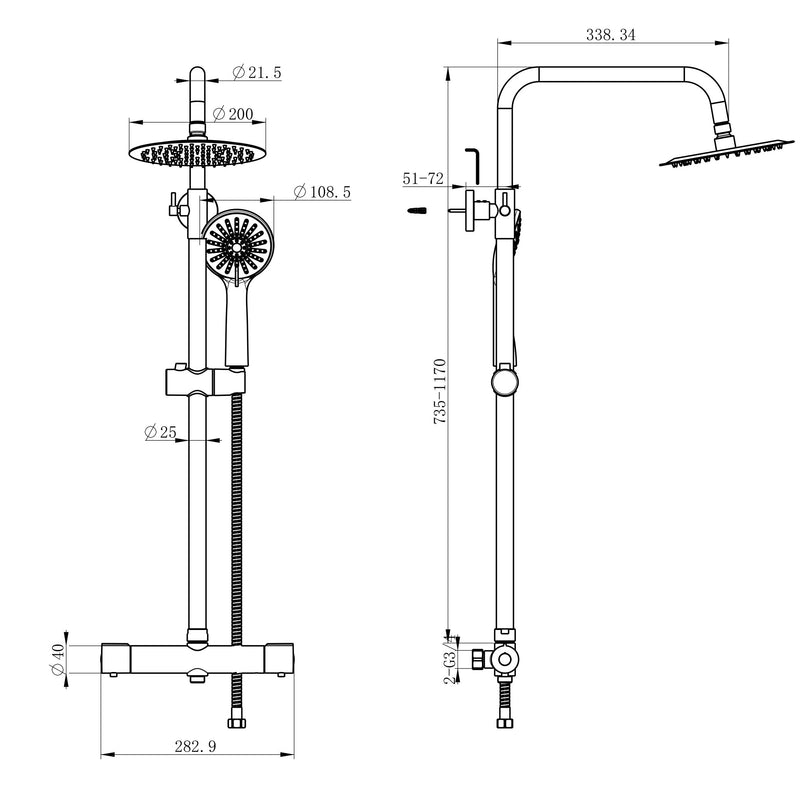

Technical Information

• Pipe Centres: 150mm +/- 15mm
• Inlet Connection Size: G1/2" & G3/4"
• Minimum Bar Pressure: 0.5 Bar
• Maximum Bar Pressure: 5.0 Bar
• Tube Diameter: 25mm / 21.5mm
• Shower Hose Length: 1500mm
• Shower Arm Projection: 338mm
• Shower Top to Bottom Adjustability: 735mm-1170mm
• Shower Head Size: Round, φ200mm
• Round exposed thermostatic mixer valve: 40mm(diameter) 283mm(length)
• Shower head Material: Stainless Steel
• Handheld: Round, 3-function, Adjustable angle
• Item Weight: 3.2kg
• Finish: Matte Black
• Material: Metal, Stainless steel, ABS plastic
• The flow rate of Rain spray on the overhead shower is 13 l/min (at 3 bar), The flow rate on the hand shower is 11 l/min.
• Compatible with all hot water systems

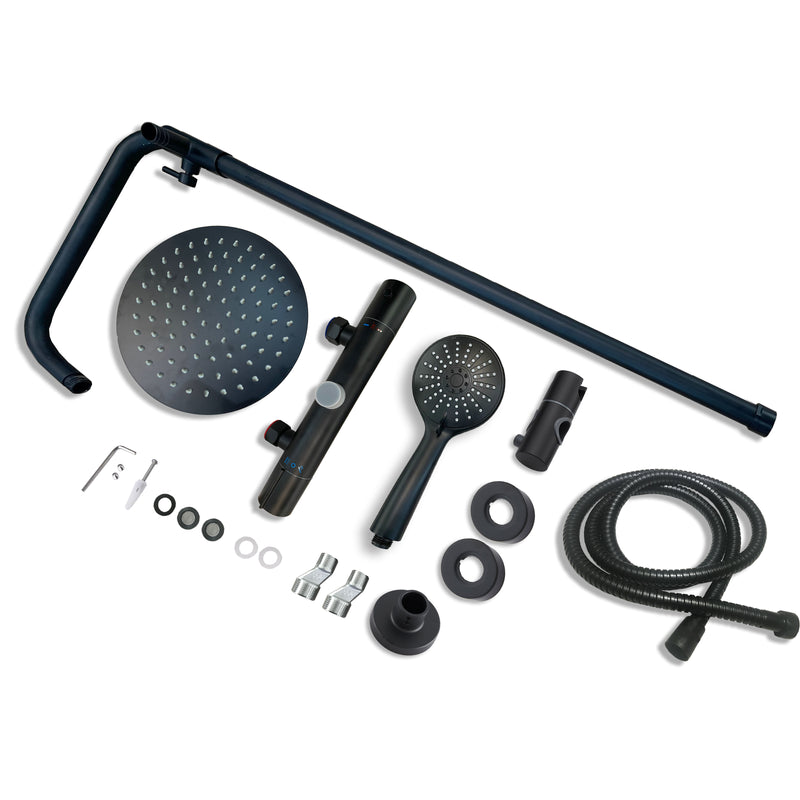

Package list:

• 1x Thermostatic Shower Mixer Valve
• 1x Shower Head
• 1x Handheld Shower And Hose
• 1x Riser Rail
• 2x Decorative Cover
• Wall Bracket & Fixings
• Installation and Usage Instructions

What's more:

• 【Precise thermostatic controlã€?/b> Turn on the switch and the water comes out at an intelligent temperature lock of 38°. enjoy the comfortable hot water immediately after opening. After a short shutdown, it will still be the comfortable water temperature set before use again. Adjust the water temperature above 38°, press the safety button to rotate the adjustment, avoid the elderly, children in the shower process caused by misuse of the water temperature rose suddenly scalded skin.
• 【Thickened Brass Constructionã€?/b>Shower system set use copper body the surface of the multi-stage process 10 electroplating treatment, with the function of resistance to high pressure, high temperature, anti-rust, anti-oxidation and anti-corrosion, full copper thickened valve body, strong pressure resistance is not easy to burst, tested to withstand 100,000 times the spool temperature control, shower system provides constant water flow to protect the whole family comfortable and safe water.
• 【Single Function Shower Headã€?/b>Handheld showers is made of highly flexible silicone material to enhance the comfort of the water splash and self-cleaning, 72 outlet holes offer 1 massage boosting model: Power Mist, make you feel extra comfort shower spa experience, large surface ring also makes water effect good and water saving.
• 【Easy Adjustable & Rotationã€?/b>The top spray and shower head can be raised and lowered freely, and the height can be set freely to meet the various needs of family members. Top spray angle can be adjusted,You can enjoy the shower as if you were in the rain.

Flow Rate:

• MIN:0.5 BAR
• MAX:5.0 BAR
• Remcommond:3 BAR

【Package Includesã€? x Thermostat Fitting, 1 x Overhead Shower. 1 x Hand Shower, 1 x Shower Hose, 1 x Shower Rail, 1 x Thermostatic Valve, 1 x Installation Instructions.

Quality Guarantee: 2 years quality assurance. if you have any questions during the use, We are willing to solve it for you. Choose us, and you will not be disappointed.
